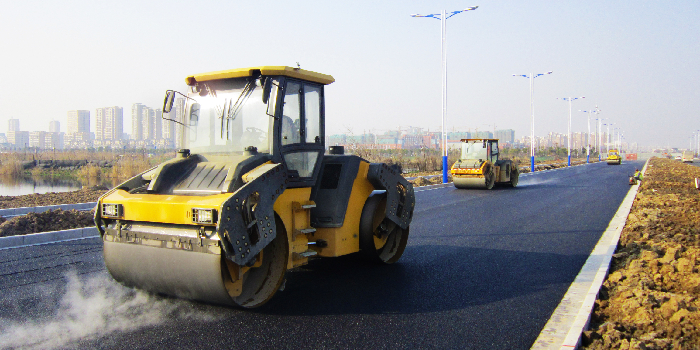

The 6208E double drum roller is equipped with a Dongkang two-stage diesel engine, which is energy-saving, economical, and has high compaction efficiency. It can be used for the construction of highways, national and provincial roads, urban ring roads, and county and township roads. It can also be used for highway repair, large-scale parking lots, sports stadiums, roads in residential areas, and other municipal maintenance work.

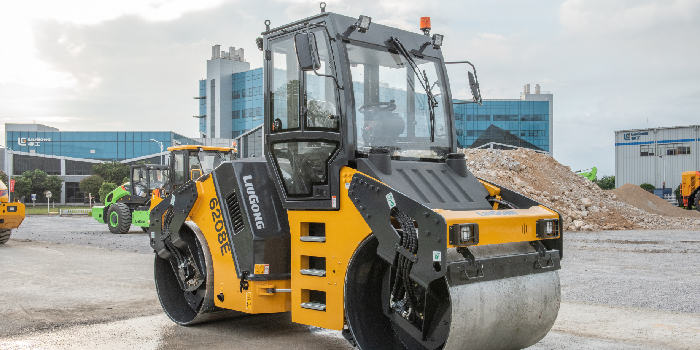

6208E
Operating weight:
8,000 kg
Rated power:
82 kW (110 hp) @ 2200 rpm
Vibration frequency:
50/67 Hz
6208E
6208E
Unit：：
- Metric
- U.S
Product Features
6208E
6208E
Specifications
| Engine | Cummins 4BTAA3.9-C110 |
| Rated Power | 82 kW (110 hp / 111 ps) @ 2,200 rpm |
| Nominal Amplitude Range | 0.45 / 0.25 mm |
| Vibration Frequency Range | 50 / 67 Hz |
| Centrifugal Force Range | 79 / 68 kN |
| Working Width | 1,600 mm |
| Operating Weight | 8,000 kg |
| Theoretical Gradeability | 35% |
| Transmission Type | Hydrostatic |
| 1st Max. Travel Speed, Fwd | 7 km/h |
| 2nd Max. Travel Speed, Fwd | 15 km/h |
| Turning Radius | 5,595 mm |
| Front Drum Static Linear Load | 260 N/cm |
| Rear Drum Static Linear Load | 260 N/cm |
| Nominal Amplitude Range | 0.45 / 0.25 mm |
| Main Relief Pressure | 34.5 MPa |
| Overall Length | 4600 mm |
| Overall Width | 1680 mm |
| Overall Height | 3050 mm |
| Download Brochure |
※For reference only.
