- Highly maneuverable, suitable for operating in tight spaces.
- Oscillating rear axle keeps four-wheel drive engaged for superior off-road mobility.

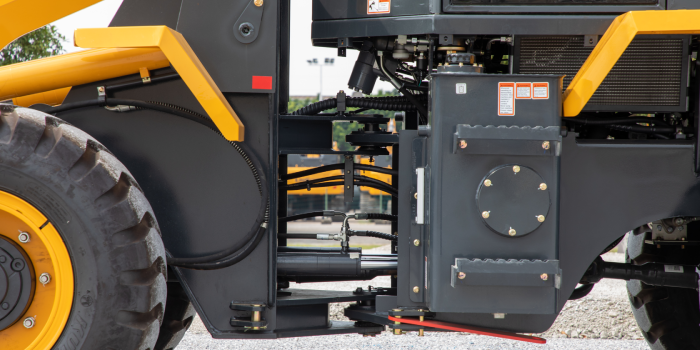

- Ground-level servicing: engine, fan, radiator and hydraulic hoses can be serviced from ground level.
- High job site versatility, multiple attachments available
820H
Operating weight:
5,920 kg
Rated power:
66 kW
Rated load capacity:
2,000 kg
820H
Unit：：：
- Metric
- U.S
Product Features
820H
820H
820H
820H
820H
Specifications
| Operating weight | 5,920 kg |
| Standard bucket | 1.2 m? |
| Rated power | 65 kW (87 hp / 88 ps) @ 2,400 rpm |
| Maximum gross power | 65 kW (87 hp / 88 ps) @ 2,400 rpm |
| Rated load capacity | 2,000 kg |
| Hydraulic cycle time | 8.5 s |
| Raise time | 4.5 s |
| Maximum travel speed | 25 km/h |
| Tipping load-full turn | 3,700 kg |
| Bucket breakout force | 50 kN |
| Dump clearance, full height discharge | 3,050 mm |
| Dump reach, full height discharge | 920 mm |
| Model | YC4A90-T22 |
| Emissions | EPA Tier 3 / EU Stage III |
| Aspiration | Naturally aspirated |
| Length with bucket down | 6,400 mm |
| Width over tires | 1,940 mm |
| Cab height | 2,900 mm |
| Turning radius, outside of tire | 4,660 mm |
| Bucket capacity | 0.7-1.5 m? |
| General Purpose | / |
| Light material | / |
| Heavy-rock | / |
| Download Brochure |
※For reference only.
