Accurate control leads to lower fuel consumption. Powered by Cummins QSK23 engine and core parts purchased globally, 9125F has world-class quality. A standard full electronically controlled positive flow system allows for high operating efficiency and lower fuel consumption compared with machines of same size class.
-
Cummins QSK23 engine features large displacement, high power, and large power reserve coefficient, making it more suitable for heavy-duty applications.
-
Better controllability with large-diameter main control valve and an electric proportional control valve.

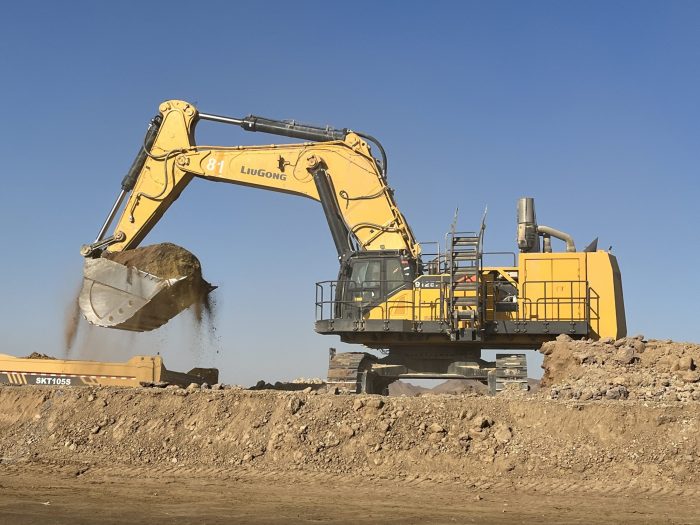

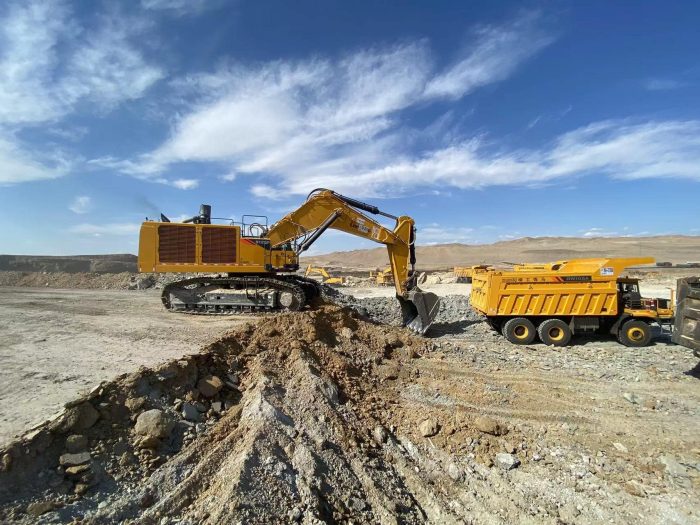

9125F
Operating Weight:
122,000 kg
Rated Power:
567 kW@ 1,800 rpm
Bucket Capacity:
7.0-9.0 m?
9125F
9125F
Unit：
- Metric
- U.S
Product Features
9125F
9125F
Specifications
| Operating Weight | 122,000 kg |
| Rated Power | 567 kW@ 1,800 rpm |
| Std. Bucket capacity | 8.0 m? |
| Travel speed(High) | 3.5 km/h |
| Travel speed(Low) | 2.6 km/h |
| Maximum swing speed | 6.2 rpm |
| Arm Digging Force (ISO) | 491 kN |
| Bucket Digging Force (ISO) | 610 kN |
| Shipping Length | 14755 mm |
| Shipping Width | 5743mm |
| Shipping Height | 6364 mm |
| Track shoe width (std) | 700 mm |
| Boom | 7550 mm |
| Arm | 3400 mm |
| Max. Digging Reach | 13997 mm |
| Max. Digging Reach on Ground | 13628 mm |
| Max. Digging Depth | 8112 mm |
| Max. Vertical Wall Digging Depth | 5832 mm |
| Max. Cutting Height | 12585 mm |
| Max. Dumping Height | 8050 mm |
| Min. Front Swing Radius | 6489 mm |
| Model | Cummins QSK23 |
| Emission Regulation | Stage IIIA / CN III |
| Main Pump Total Flow | 2040 L/min |
| Relief Pressure, main | 37 MPa |
| Download Brochure |
※For reference only.
