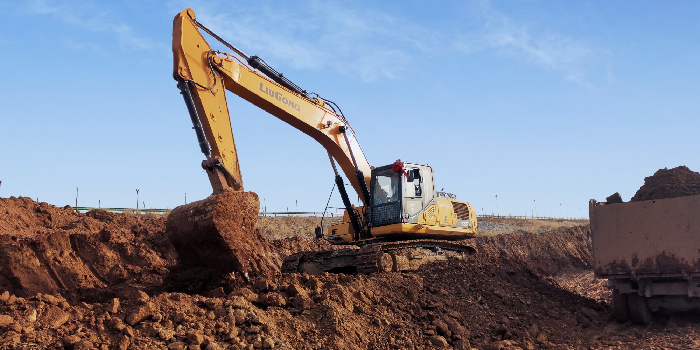

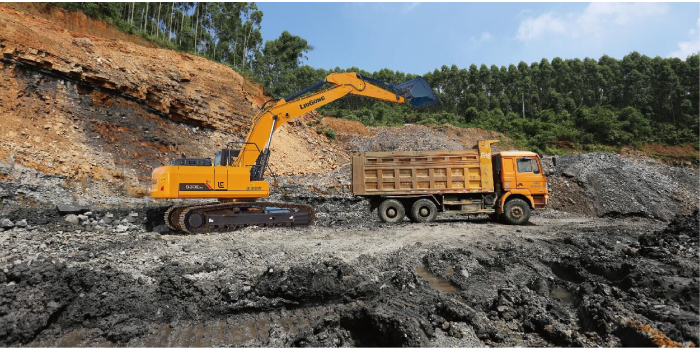

933EHD

933E－Stage II

Operating weight	33600 kg	74075 lbs
Engine power	169 kW @ 2200 rpm	230 ps@ 2200 rpm
Std. Bucket capacity	1.6 m?	2.1 yd?
Travel speed(High)	5.5 km/h	3 mph
Travel speed(Low)	3.0 km/h	2 mph
Maximum swing speed	10.3 rpm	10.3 rpm
Arm breakout force	137 kN	30799 lbf
Arm breakout force Power boost	149 kN	33497 lbf
Bucket breakout force	187 kN	42039 lbf
Bucket breakout force Power boost	203 kN	45636 lbf
Shipping length	10650 mm	34’11”
Shipping width	3190 mm	10’6”
Shipping height	3525 mm	11’7”
Track shoe width (std)	600 mm	1’12”
Boom	6200 mm	20’4”
Arm	3050 mm	10’
Digging reach	10653 mm	34’11”
Digging reach on ground	10453 mm	34’4”
Digging depth	7300 mm	23’11”
Vertical wall digging depth	6216 mm	20’5”
Cutting height	10300 mm	33’10”
Dumping height	7265 mm	23’10”
Minimum front swing radius	4040 mm	13’3”
Model	Cummins QSB7	Cummins QSB7
Emission	Stage III / Tier 3	Stage III / Tier 3
System maximum flow	2×266 L/min (2x70 gal/min)	2×266 L/min (2x70 gal/min)
System pressure	34.3 MPa	4975 psi
