- Full protection track guard is equipped as standard to avoid stone damage to the supporting wheels and chain tracks, which is more adaptable to the harsh ground conditions and provides reliability.
- All three fuel filter elements are nano filter elements with better filtration effect, which can effectively protect the engine injectors and other important parts and improve reliability against poor quality diesel fuel.

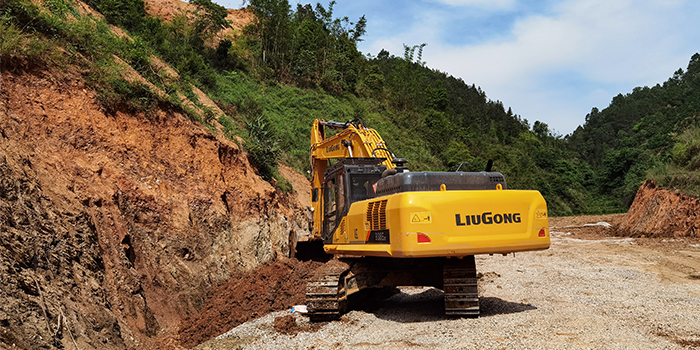

938EHD
Operating weight:
38,400 kg
Rated power:
214 kW
Bucket capacity:
1.9 m?
938EHD
Unit：：：
- Metric
- U.S
Product Features
938EHD
938EHD
Specifications
| Operating weight | 38400 kg |
| Engine power | 214 kW @ 2100 rpm |
| Std. Bucket capacity | 1.9 m? |
| Travel speed (High) | 5.5 km/h |
| Travel speed (Low) | 3.4 km/h |
| Maximum swing speed | 10 rpm |
| Arm breakout force | 227 kN |
| Bucket breakout force | 290 kN |
| Shipping length | 11350 mm |
| Shipping width | 3190 mm |
| Shipping height | 3800 mm |
| Track shoe width (std) | 600 mm |
| Boom | 6400 mm |
| Arm | 2900 mm |
| Digging reach | 10728 mm |
| Digging reach on ground | 10527 mm |
| Digging depth | 6890 mm |
| Vertical wall digging depth | 5085 mm |
| Cutting height | 9818 mm |
| Dumping height | 6655 mm |
| Minimum front swing radius | 4385 mm |
| Model | Cummins L9PLUS |
| Emission | EU Stage IIIA |
| System maximum flow | 2 × 351 L/min |
| System pressure | 34.3 MPa |
| Download Brochure |
※For reference only.
