- Efforts less full hydraulic steering system
- Lifting system save time and increase production
- The center of gravity act on point which provide more stable operation on jobsite.
- The cab is spacious and less noise with a wider vision
- Strong power train, world-class components suppliers
- Brake system and alarm system, safe and reliable
- Leaf spring suspension system with excellent shock absorption

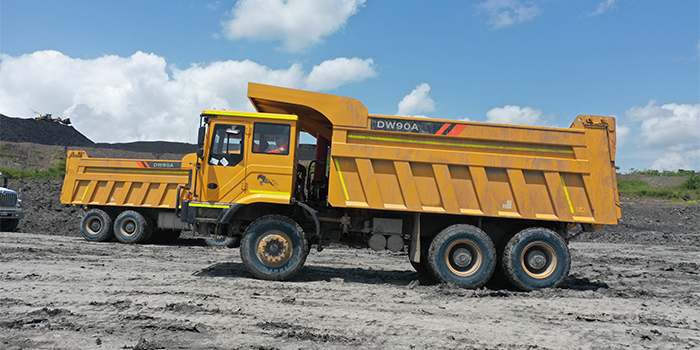

DW90A
Rated power:
306-338 kW
Rated operating load:
55,000-59,000 kg
Body capacity:
30-38 m?
DW90A
Unit：
- Metric
- U.S
Product Features
DW90A
DW90A
DW90A
DW90A
DW90A
DW90A
Specifications
| Operating weight | 31,000 kg |
| Rated load | 60,000 kg |
| Gross Machine Weight | 91,000 kg |
| Struck Capacity | 30/32 m? |
| Heaped capacity (SAE 2:1) | 36/38 m? |
| Engine Model | YC6K480 |
| Emission regulation | Tier 3 / Stage III |
| Rated power | 353 kW (473 hp) @ 1900 rpm |
| Transmission Model | 7DS220A |
| Type | Manual |
| Maximum travel speed | 36 km/h |
| Dimension | 5,830 x 3,140 x 1,790 mm |
| Tire | 14.00R25 |
| Download Brochure |
| Operating weight | 31,000 kg |
| Rated load | 60,000 kg |
| Gross Machine Weight | 91,000 kg |
| Struck Capacity | 30/32 m? |
| Heaped capacity (SAE 2:1) | 36/38 m? |
| Engine Model | YC6K520 |
| Emission regulation | Tier 3 / Stage III |
| Rated power | 382 kW (512 hp) @ 1,900 rpm |
| Transmission Model | FC6A250/Allison 4800 |
| Type | Automatic |
| Maximum travel speed | 37 km/h |
| Dimension | 6,370 x 3,140 x 1,680 mm |
| Tire | 14.00R25 |
| Download Brochure 1 Download Brochure 2 |
※For reference only.
