- Security And Intelligence:Intelligent control system, real-time monitoring of equipment status;Multiple security protection to ensure personnel safety;Intelligent charging system to extend battery life.
- Easy To Control:Drivable at full height to improve working effificiency;The proportion drops and the descent moves smoothly;Forklift pocket, easy to load, unload and transport.
- Maintenance Friendly:Self-lubricating sleeve;Swing-out tray on both sides, easy maintenance;Fault code indication to facilitate troubleshooting.

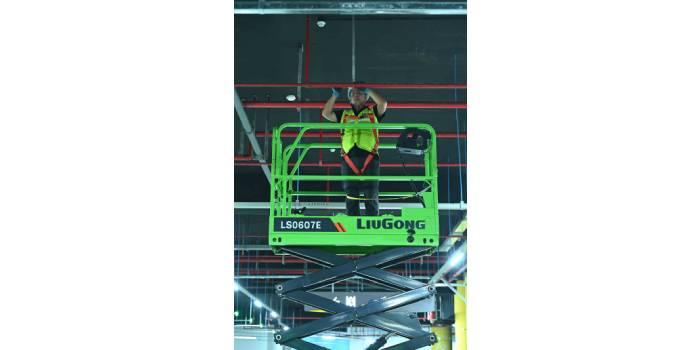

LS0607E
Max.Working Height:
7.8 m
Rated Load on Working Platform:
230 kg
Overall Length/Width:
1.86*0.785 m
LS0607E
Unit：：：
- Metric
- U.S
Product Features
LS0607E
Specifications
| Max.Work Height | 7.8 m |
| Max.Platform Height | 5.8 m |
| Min.Platform Height | 0.95 m |
| Platform Size（L×W） | 1.64*0.75 m |
| Overall Length | 1.86 m |
| Overall Width | 0.785 m |
| Overall Height (Rails Down) | 1.72 m |
| Max.Gradeability | 25% |
| Lift Motor | 24V/3.3kW |
| Rated Load on Working Platform | 230 kg |
| Battery | 24V/225Ah |
| Charger | 24V/30A |
| Total Weight | 1540 kg |
| Download Brochure |
※For reference only.
