- Security And Intelligence:Intelligent control system, real-time monitoring of equipment status;Multiple security protection to ensure personnel safety;Intelligent charging system to extend battery life.
- Easy To Control:Drivable at full height to improve working effificiency;The proportion drops and the descent moves smoothly;Forklift pocket, easy to load, unload and transport.
- Maintenance Friendly:Self-lubricating sleeve;Swing-out tray on both sides, easy maintenance;Fault code indication to facilitate troubleshooting.

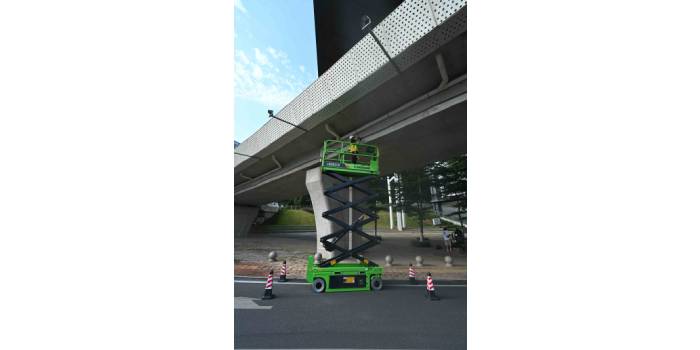

LS0812E
Max.Working Height:
10 m
Rated Load on Working Platform:
450 kg
Overall Length/Width:
2.49*1.19 m
LS0812E
Unit：：：
- Metric
- U.S
Product Features
LS0812E
Specifications
| Max.Work Height | 10 m |
| Max.Platform Height | 8 m |
| Min.Platform Height | 1.22 m |
| Platform Size（L×W） | 2.28*1.15 m |
| Overall Length | 2.49 m |
| Overall Width | 1.19 m |
| Overall Height (Rails Down) | 1.8 m |
| Max.Gradeability | 25 % |
| Lift Motor | 24 V / 3.3 kW |
| Rated Load on Working Platform | 450 kg |
| Battery | 24 V / 200 Ah |
| Charger | 24 V / 30 A |
| Total Weight | 2540 kg |
| Download Brochure 1 Download Brochure 2 |
※For reference only.
